Layers, tags and exit codes — and why the API layer passes immediately while the UI layer does not.

What you'll learn

What a layer is, what a suite tag is for, how to read a run's output and its exit code, and how to turn five red scenarios into four green ones by giving the suite a login.

Time: 20 minutes · You need: the application running (yarn dev).

Two layers, two answers

A project can be exercised at three layers, and they fail for different reasons:

Layer	What it drives	What a failure usually means
`api`	HTTP requests, no browser	the endpoint, the payload or the port
`ui`	a real browser	the page, the locator or the login
`hybrid`	both inside one scenario	the two disagree — the interesting bug

Start with the layer that has the fewest moving parts:

sdods run -p rwa-bank -e local -l api

API layer run: nine scenarios passed in under two seconds, with the artifacts, HTML report and dashboard paths printed — Nine endpoints answered. No browser was started, so this is the run you put in a pre-commit hook.

Then the browser:

sdods run -p rwa-bank -e local -l ui -b chromium -t @smoke

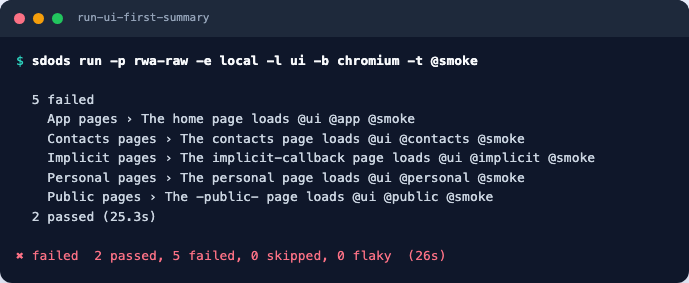

First UI run: five scenarios failed, two passed — Five failures, and every one of them is the same failure.

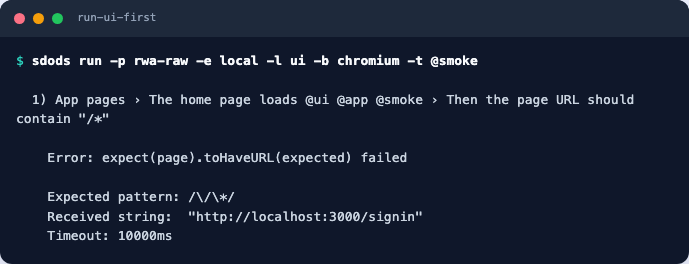

A failing assertion showing the expected URL pattern and the received URL http://localhost:3000/signin — The application redirected to its sign-in page. The suite is not wrong; it has not been given an account.

These two screenshots come from the project exactly as analyze wrote it. If you already applied the corrections from chapter 1, your run shows the corrected routes — the redirect is still what happens on /personal and /contacts.

Give the suite an account

The user pool is a CSV, login happens once, and the browser state is reused.

sdods auth capture -p rwa-bank -e local
sdods auth list -p rwa-bank -e local

Cached login states for two pool users with their age and freshness — Signed in once, kept for the configured lifetime, re-used by every scenario that asks for that role.

A scenario asks for a role with a tag:

projects/rwa-bank/features/personal/personal.feature

  @smoke @user:standard
  Scenario: The personal page loads
    Given I navigate to the "personal" page
    Then the page URL should contain "/personal"

Do the same for features/contacts/contacts.feature, then run it again:

sdods run -p rwa-bank -e local -l ui -b chromium -t @smoke

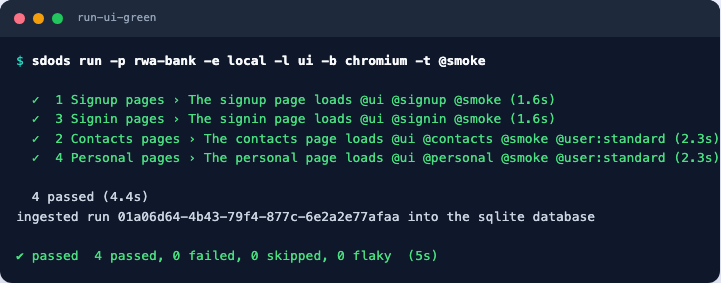

Corrected UI run: four scenarios passed in under five seconds — Four pages, four passes — signed in as a real seeded user, with nothing mocked.

The API layer was green from the start; the UI layer needed one fact about the application that no static analysis could give it.

Tags are the interface to your suite

Every scenario carries exactly one suite tag — that rule is enforced by lint, so the taxonomy cannot rot.

sdods features list -p rwa-bank

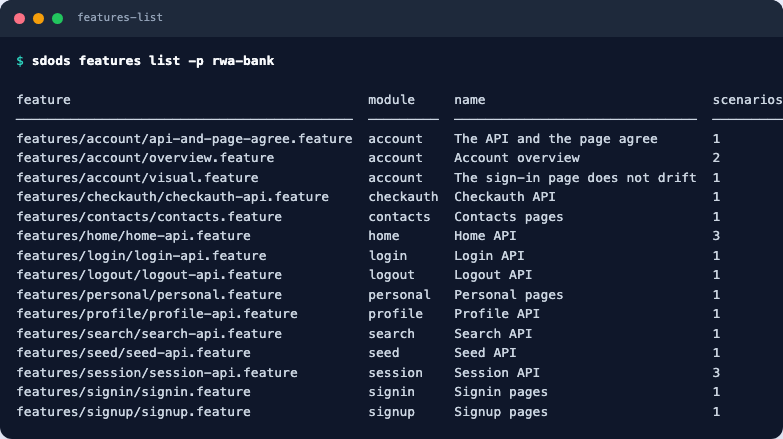

Feature inventory listing each feature with its module, scenario count, layers and tags — Module, layer and tags for every feature. This is the table to look at when a tag expression selects nothing.

Tag expressions are boolean:

sdods run -p rwa-bank -e local -t "@smoke"
sdods run -p rwa-bank -e local -t "@regression and @account"
sdods run -p rwa-bank -e local -t "@smoke and not @visual"

Exit codes

Runs are meant to be read by CI as well as by you:

Code	Meaning
0	everything passed
1	at least one scenario failed
2	configuration is wrong (unknown project, env…)

The full list is in Reference → Exit codes.

Break it on purpose

A suite you have never seen fail is a suite you do not trust. Stop the application (Ctrl-C in its terminal) and run the API layer again: every scenario fails with a connection error rather than an assertion error, which is exactly the distinction you want in a failure report. Start it again before continuing.

Checkpoint

sdods run -p rwa-bank -e local -l api && sdods run -p rwa-bank -e local -l ui -b chromium -t @smoke

Both commands exit 0. Next: UI scenarios and page objects.
